Description
The side wind design allows unrestricted movement where conventional top wind units are obstructed by items mounted on your drawbar. The overall height of this jockey wheel with 4 clamping positions makes it suitable of a huge range of applications. The integrated gearbox provides effortless winding with a static capacity of up to 400kg.
The Alko 628500 is a extra tall jockey wheel with a 200mm (8") solid tyre. The zinc coated 48mm diameter shaft has a lift range of 320mm to 841mm between the ground and centre of drawbar.

Features
Side winding gear driven operation
Huge height range
Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces

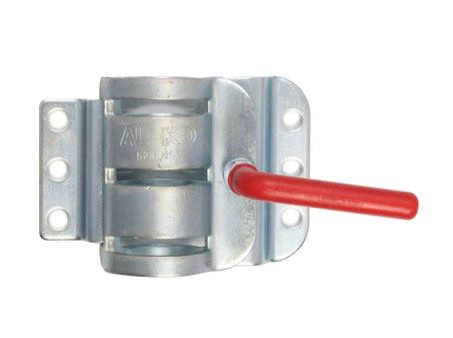

Included Alko Extra Wide Clamp - this can bolted or welded on. (Bolts not included)
Zinc coated for lasting protection
1 year warranty.

Weight: 9.1kg
Max Lift / extension: 266mm
Minimum Ground Clearance(G1): 320mm (from centre of drawbar)
Maximum Ground Clearance: 841mm (from centre of drawbar)
Overall Height Open: 1037mm
Overall Height Closed: 771mm
Finish: Zinc Plated
